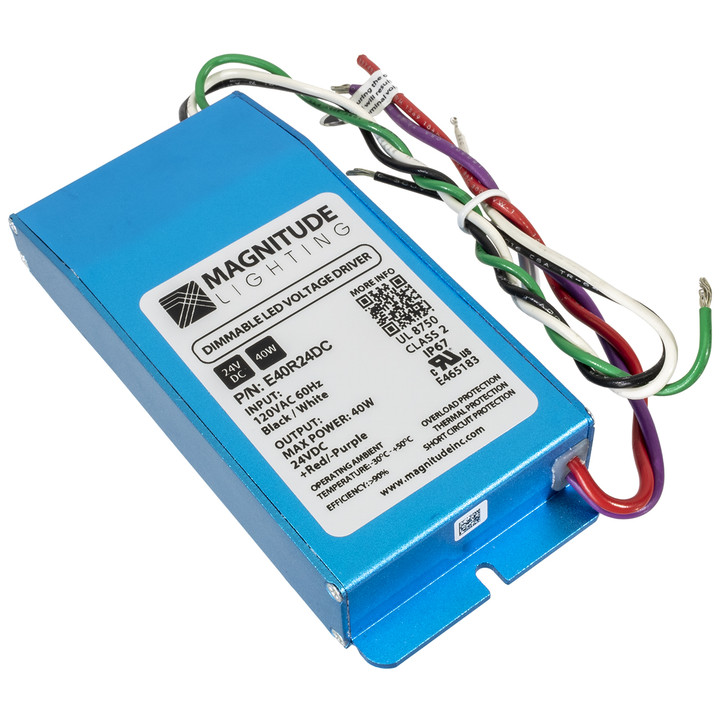

24 Volt Electronic Class 2 Dimmable Driver
SKU: STRP24A-EDD
$129.99
$99.99
(You save $30.00)
- Spec Sheet:
- 24V Class 2 Driver Spec Sheet
Related Products
Magnitude Lighting
12 Volt Magnetic Dimmable Class 2 LED Driver - AC/DC Transformer
As low as
$79.99
Brilliant Brand Lighting
18-Function LED RGB Touch Controller - 12 Volt / 24 Volt
$39.99
$29.99
No Label
12/24 Volt Barrel Plug Connectors
$2.99
As low as
$2.49
Brilliant Brand Lighting
12/24 Volt Barrel Plug Splitter
As low as
$6.99
No Label
Dimmable LED Panel Light - 2 Foot x 2 Foot
$64.99
$49.99
No Label
24 Volt LED Ruler Light Bar Power Supply - 24 Watt
$17.99
$9.99
No Label
Single Color LED Strip Light Wireless (WiFi) Smart Controller - 12 Volt / 24 Volt
$32.99
$14.99
Brilliant Brand Lighting
24 Volt LED FCOB Strip Light Jumper Connector
$4.99
$3.49
No Label
Dimmable LED Panel Light - 2 Foot x 4 Foot
$90.99
$69.99
Product Overview
An electronic Class 2, phase dimmable LED driver with an extremely compact, low profile aluminum case making it the perfect choice for under cabinet lighting, kick/cove lighting, mirror lighting and multiple other residential and commercial lighting fixture applications. Dimmable with any standard MLV/Incandescent TRIAC (leading edge) dimmer switches installed on the input side of the driver. Features overload protection, thermal protection, and short circuit protection. For smooth diming an 8W minimum load is required.
Note: not compatible with the 24V Dream Color RGB LED neon rope lights or RGB controller.
Downloads
Specifications
| Input Voltage: | 120V AC |
| Output Voltage: | 24V DC |
| Max Power: | 40W |
| Efficiency: | >90% |
| Operating Temperature: | -4°F – 122°F (-20°C – 50°C) |
| Weatherproof Rating: | IP67 |
| Dimensions: | 4.92 inches x 2.2 inches x 0.77 inches, input lead length 5 inches, output lead length 10 inches |
| Listings: | UL Recognized |
