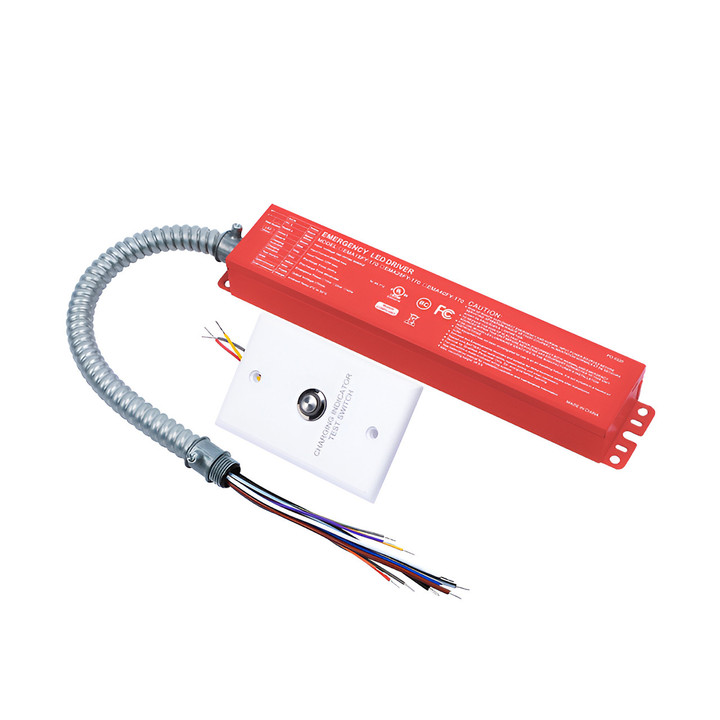

Emergency Driver Backup Battery for LED Troffers - 8 Watt - Series TTR
- Compatibility:
- LED Series TTR Troffers
- Spec Sheet:
- Emergency Driver Specifications
Product Overview
The last thing you want in a power outage is to not be able to find your way when left in the dark. Emergency battery backups are a valuable addition to LED troffers or any commercial lighting. When integrated with your troffer lighting system, it provides a reliable safety net in the event of emergencies. When equipped with our 8-Watt battery, your LED troffers will continue to illuminate during power failures. This ensures safe evacuation paths in commercial spaces, offices, schools, hospitals, and other public areas. An additional 90 minutes of constant output illumination can be a crucial benefit.
This emergency driver comes UL listed making it compliant with top safety standards which is an important factor, especially in commercial buildings where emergency lighting is mandated. It has a convenient built-in self-test feature that periodically checks the battery’s functionality. If any issues arise it alerts maintenance personnel, ensuring timely maintenance and reliability. In addition, this battery offers triple protection safeguarding your equipment against over-voltage, low-voltage, and over-temperature conditions and extending its lifespan.
Features:- Provides 90 minutes of emergency lighting
- Self testing and malfunction indicator
- Over temperature protection, over charge protection, over discharge protection
- Surge protection:Live neutral 3KV
- UL listed and CEC compliant
Compatible with our Series TTR Troffers.
Downloads
Specifications
Model: | TRG-8EMDRV/EMH-08170-HY |
Input Voltage: | 100-347V AC, 50/60Hz |
Input Current: | 150mA max |
Recharge Power: | 10W |
Output Voltage: | 170V DC |
Emergency Power: | 8W |
Recharge Time: | 24 Hrs |
Discharge Time: | 90 Minutes |
Battery: | Li-ion |
Temperature: | 41-122F |
