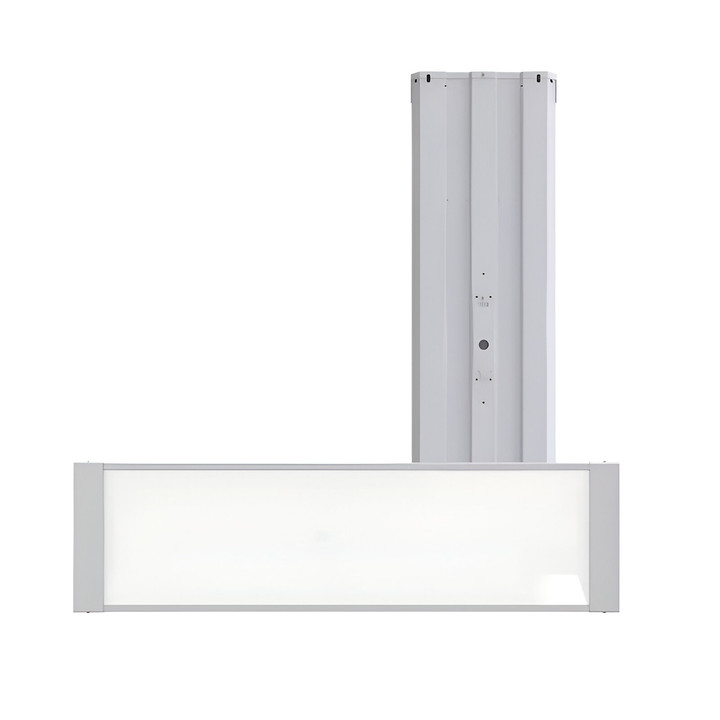

LED Linear High Bay Light - Type LHB - 4 Foot - 325 Watt - 48,750 Lumens - Cool White (5000K) - Sold In Multiples of 2
SKU: LHBG325-45K
$199.99
$119.99
(You save $80.00)
- Availability:
- US Stock - Usually ships in 3 business days
- Dimmable:
- 0-10V Dimmable
- Certifications:
- UL, FCC, DLC Premium, RoHS
- Warranty:
- 5 Years
- Spec Sheet:
- Type HBL Linear High Bay Specifications
Free Standard Shipping
on commercial lighting orders over $299! *Cont. US Only
on commercial lighting orders over $299! *Cont. US Only
Related Products
No Label
Remote for LED UFO and Linear High Bay Lights - Type LHB & HBL
$29.99
$24.99
No Label
Microwave Motion Sensor for LED Linear High Bay Lights - Type LHB & HBL
$29.99
$19.99
No Label
LED UFO High Bay Light - Series YN - Selectable Wattage (100W-240W) - 36,000 Lumens Max - Cool White (5000K)
$149.99
As low as
$89.99
Product Overview
Introducing the Linear High Bay 4ft, a powerhouse of illumination with 325 watts of energy at a vibrant 5000K color temperature. Designed for large spaces, it delivers superior brightness, ensuring every corner is well-lit. Whether in industrial settings, warehouses, or commercial spaces, this high bay fixture redefines lighting efficiency. Its robust construction and sleek design make it an ideal choice for modern spaces. Elevate your environment with the brilliance and energy savings offered by the Linear High Bay 4ft, setting new standards for lighting excellence.
***Must purchase in multiples of 2***
Features:- Lumen output: 150lm per watt, 48,750 total
- CCT: 5000K
- Dimmable: 0-10V
- Suitable for dry and damp locations
- Optional Motion Sensor and Battery Backup
- Certifications: DLC Premium, UL, FCC
- Recommended for ceiling heights from 15 feet – 40 feet
Certifications
Downloads
Specifications
| Input Voltage: | AC 120-277V |
| Input Wattage: | 325W |
| Equivalent: | 1000W HID/MH |
| Lumen Output: | 48,750 |
| CCT: | 5000K |
| Beam Angle: | 116.5° |
| Efficacy: | 150 LM/W |
| Power Factor: | >0.95 |
| THD: | <20 |
| Lifetime: | >50,000 Hours |
| Dimmable: | 0-10V |
| IP Rating: | IP20 |
| CRI: | >80 |
| Operating Temp: | -4°F-104°F |
| Mounting: | Suspension Chain |
| Dimensions: | 45.79”L x 17.32”W x 2.17”H |
| Certifications: | DLC Premium 5.1, UL, FCC certified |
| Warranty: | 5 Years | Additional Options: | Motion Sensor and Emergency Backup Battery |
Motion Sensor Specifications
| Control: | ON/OFF,0-10V Dimming |
| Setting Tools: | Remote Control |
| Detection Area: | 25%/50%/75%/100% |
| Hold Time: | Remote Control： 5s/30s/1min/3min/5min/10min/20min/30min |
| Stand-By Period: | Remote Control: 0s/10s/30s/1min/5min/10min/30min |
| Stand-By Dimming Level: | Remote Control： 10%/20%/30%/50% |
| Input Range: | 12V DC |
| Daylight Threshold: | Disable + 7 Settings from 2LUX - 120LUX |
| Operating Voltage: | 12V DC |
| Detection Range: | 45.92FT |
| Mounting Height: | 49.2FT |
| IP Rating: | IP20 |
